55,54 zł
55,54 zł

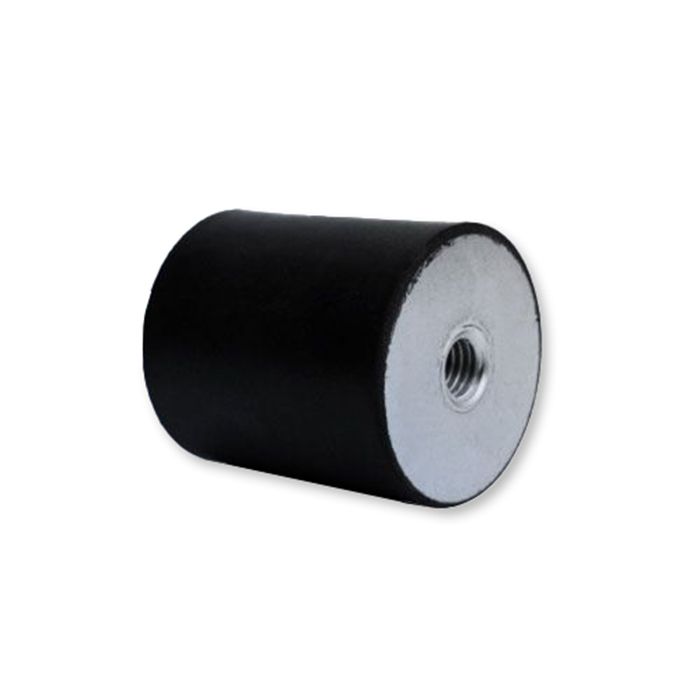

Pack of 4pcs-Type E Cylindrical Mount F, Ø25mm H15mm M8x8mm, NR 50 ShA Standard Steel
SKU
R4E2515M8-1.5
- Mount Type: E (Female)
- Diameter: 25mm
- Height: 15mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.06Kg
- Hardness: 50 ShA
- Maximum Compression Load: 22.97 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
- Mount Type: E (Female)
- Diameter: 25mm
- Height: 15mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.056Kg
- Hardness: 50 ShA
- Maximum Compression Load: 22.97 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
| Kolor | Czarny |
|---|---|
| Twardość | 50 ShA |
| Rodzaj metalu | Stal standardowa |
| Rodzaj Wibroizolatora | E |
| Wydłużenie Przy Zerwaniu (%) | 450 |
| Materiał | Natural Rubber (NR) |
| Maksymalna temperatura (°C) | 70 |
| Minimalna temperatura (°C) | -25 |
| Gęstość (g/cm³) | 1.06 |
| Wysokość (mm) | 15 |
| Średnica (mm) | 25 |
| Maksymalne obciążenie przy ściskaniu (kg) | 22.97 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 8 |
| Thread Length/Depth 2 (mm) | 8 |
| Rozmiar gwintu 1 | M8 |
| Weight (kg) | 0.056 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
