54,65 zł
54,65 zł

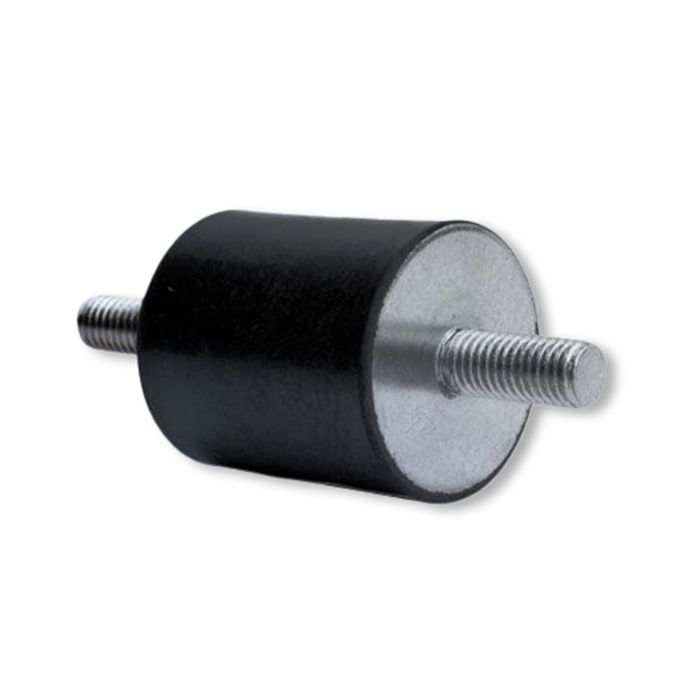

Pack of 4pcs-Type A Cylinder Mount M/M, Ø20mm H20mm M6x18mm, NR 45 ShA Standard Steel
SKU
R4A2020M618-1
- Mount Type: A
- Diameter: 20mm
- Height: 20mm
- Male Bolt Size: M6
- Male Bolt Length: 18mm
- Material: Natural Rubber (NR)
- Hardness: 45 ShA
- Maximum Load Compression: 11.25Kg
- Maximum Shear Load: 1.46Kg
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.064Kg
Type A Bobbin Mounts provide exceptional vibration isolation, enhancing system performance and extending the lifespan of sensitive components. Suitable for both compression and shear applications, they are ideal for engines, compressors, electronics, and more. Note: Not for failsafe applications.
- Mount Type: A
- Diameter: 20mm
- Height: 20mm
- Male Bolt Size: M6
- Male Bolt Length: 18mm
- Material: Natural Rubber (NR)
- Hardness: 45 ShA
- Maximum Load Compression: 11.25Kg
- Maximum Shear Load: 1.46Kg
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.068Kg
Type A Bobbin Mounts provide exceptional vibration isolation, enhancing system performance and extending the lifespan of sensitive components. Suitable for both compression and shear applications, they are ideal for engines, compressors, electronics, and more. Note: Not for failsafe applications.
| Kolor | Czarny |
|---|---|
| Twardość | 45 ShA |
| Rodzaj metalu | Stal standardowa |
| Rodzaj Wibroizolatora | A |
| Wydłużenie Przy Zerwaniu (%) | 450 |
| Materiał | Natural Rubber (NR) |
| Maksymalna temperatura (°C) | 70 |
| Minimalna temperatura (°C) | -25 |
| Gęstość (g/cm³) | 1.04 |
| Wysokość (mm) | 20 |
| Średnica (mm) | 20 |
| Maksymalne obciążenie przy ściskaniu (kg) | 11.25 |
| Maksymalne Obciążenie Ścinające (kg) | 1.46 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Wysokość (mm) | 56 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 18 |
| Thread Length/Depth 2 (mm) | 18 |
| Rozmiar gwintu 1 | M6 |
| Weight (kg) | 0.068 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
