78,54 zł 78,54 zł

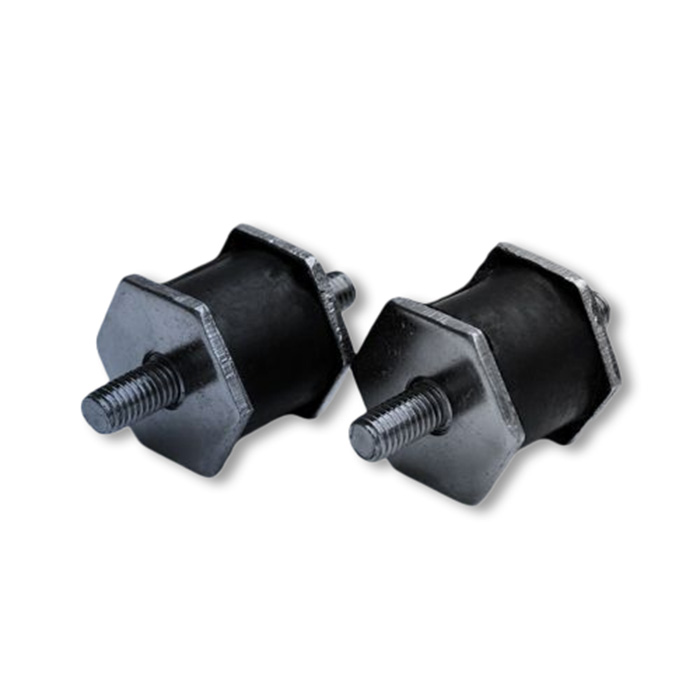

Pack of 4pcs-AH Hex. Mount (M/M), Ø32mm H27mm M8x15mm, NR 60 ShA Standard Steel

SKU

R4AH3227M815-2

Mount Type: AH (Male/Male)
Diameter: 32mm
Height: 27mm
Male Bolt Size: M8
Male Bolt Length: 15mm
Maximum Load Compression: 52.5Kg
Maximum Shear Load: 5.25Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.4Kg

The AH Hexagonal Bobbin Mounts are designed to offer outstanding vibration isolation and damping in a variety of applications. These mounts are engineered to provide superior performance and long-lasting durability, ensuring smoother operations for your machinery and equipment. Below are the key benefits:

More Information

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mount Type: AH (Male/Male)
Diameter: 32mm
Height: 27mm
Male Bolt Size: M8
Male Bolt Length: 15mm
Maximum Load Compression: 52.5Kg
Maximum Shear Load: 5.25Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.26Kg

More Information

More Information
Kolor	Czarny
Twardość	60 ShA
Rodzaj metalu	Stal standardowa
Rodzaj Wibroizolatora	AH
Wydłużenie Przy Zerwaniu (%)	400
Materiał	Natural Rubber (NR)
Maksymalna temperatura (°C)	70
Minimalna temperatura (°C)	-25
Gęstość (g/cm³)	1.2
Wysokość (mm)	27
Średnica (mm)	32
Maksymalne obciążenie przy ściskaniu (kg)	52.5
Maksymalne Obciążenie Ścinające (kg)	5.25
Wytrzymałość Na Rozciąganie (MPa)	14 MPa
Wysokość (mm)	57
Tolerance Hardness (±)	5
Thread Length/Depth 1 (mm)	15
Thread Length/Depth 2 (mm)	15
Rozmiar gwintu 1	M8
Weight (kg)	0.26
