65,12 zł 65,12 zł

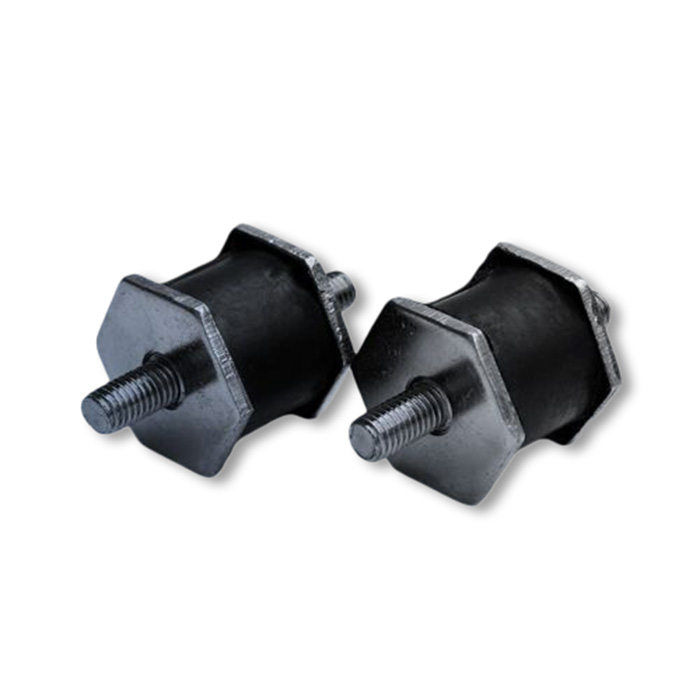

Pack of 4pcs-AH Hex. Mount (M/M), Ø21mm H19mm M8x20mm, NR 45 ShA Standard Steel

SKU

R4AH2119M820-1

Mount Type: AH (Male/Male)
Diameter: 21mm
Height: 19mm
Male Bolt Size: M8
Male Bolt Length: 20mm
Maximum Load Compression: 11.25Kg
Maximum Shear Load: 1.46Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.136Kg

The AH Hexagonal Bobbin Mounts are designed to offer outstanding vibration isolation and damping in a variety of applications. These mounts are engineered to provide superior performance and long-lasting durability, ensuring smoother operations for your machinery and equipment. Below are the key benefits:

More Information

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mount Type: AH (Male/Male)
Diameter: 21mm
Height: 19mm
Male Bolt Size: M8
Male Bolt Length: 20mm
Maximum Load Compression: 11.25Kg
Maximum Shear Load: 1.46Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.04Kg

More Information

More Information
Kolor	Czarny
Twardość	45 ShA
Rodzaj metalu	Stal standardowa
Rodzaj Wibroizolatora	AH
Wydłużenie Przy Zerwaniu (%)	450
Materiał	Natural Rubber (NR)
Maksymalna temperatura (°C)	70
Minimalna temperatura (°C)	-25
Gęstość (g/cm³)	1.04
Wysokość (mm)	19
Średnica (mm)	21
Maksymalne obciążenie przy ściskaniu (kg)	11.25
Maksymalne Obciążenie Ścinające (kg)	1.46
Wytrzymałość Na Rozciąganie (MPa)	10 MPa
Wysokość (mm)	59
Tolerance Hardness (±)	5
Thread Length/Depth 1 (mm)	20
Thread Length/Depth 2 (mm)	20
Rozmiar gwintu 1	M8
Weight (kg)	0.04
