64,58 zł 64,58 zł

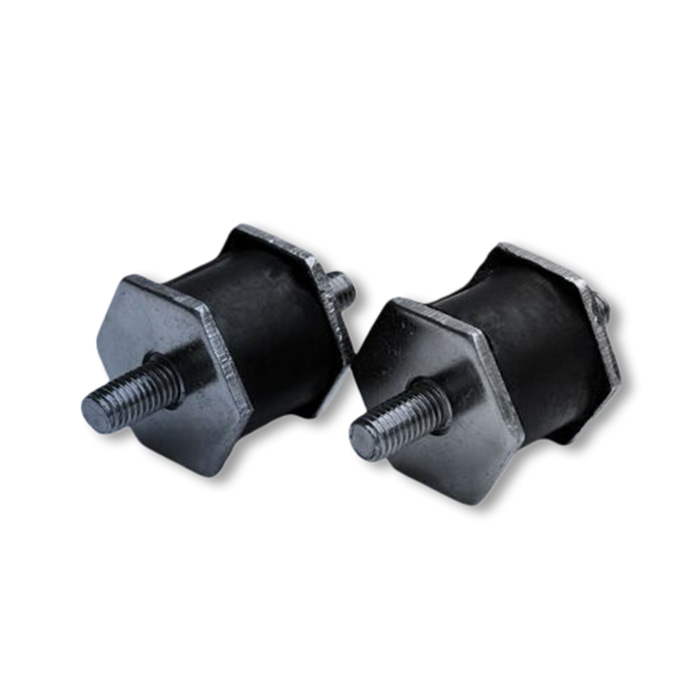

Pack of 4pcs-AH Hex. Mount (M/M), Ø21mm H19mm M6x18mm, NR 50 ShA Standard Steel

SKU

R4AH2119M618-1.5

Mount Type: AH (Male/Male)
Diameter: 21mm
Height: 19mm
Male Bolt Size: M6
Male Bolt Length: 18mm
Maximum Load Compression: 14.26Kg
Maximum Shear Load: 1.85Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.048Kg

The AH Hexagonal Bobbin Mounts are designed to offer outstanding vibration isolation and damping in a variety of applications. These mounts are engineered to provide superior performance and long-lasting durability, ensuring smoother operations for your machinery and equipment. Below are the key benefits:

More Information

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mount Type: AH (Male/Male)
Diameter: 21mm
Height: 19mm
Male Bolt Size: M6
Male Bolt Length: 18mm
Maximum Load Compression: 14.26Kg
Maximum Shear Load: 1.85Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.04Kg

More Information

More Information
Kolor	Czarny
Twardość	50 ShA
Rodzaj metalu	Stal standardowa
Rodzaj Wibroizolatora	AH
Wydłużenie Przy Zerwaniu (%)	450
Materiał	Natural Rubber (NR)
Maksymalna temperatura (°C)	70
Minimalna temperatura (°C)	-25
Gęstość (g/cm³)	1.06
Wysokość (mm)	19
Średnica (mm)	21
Maksymalne obciążenie przy ściskaniu (kg)	14.26
Maksymalne Obciążenie Ścinające (kg)	1.85
Wytrzymałość Na Rozciąganie (MPa)	10 MPa
Wysokość (mm)	55
Tolerance Hardness (±)	5
Thread Length/Depth 1 (mm)	18
Thread Length/Depth 2 (mm)	18
Rozmiar gwintu 1	M6
Weight (kg)	0.04
