58,19 zł 58,19 zł

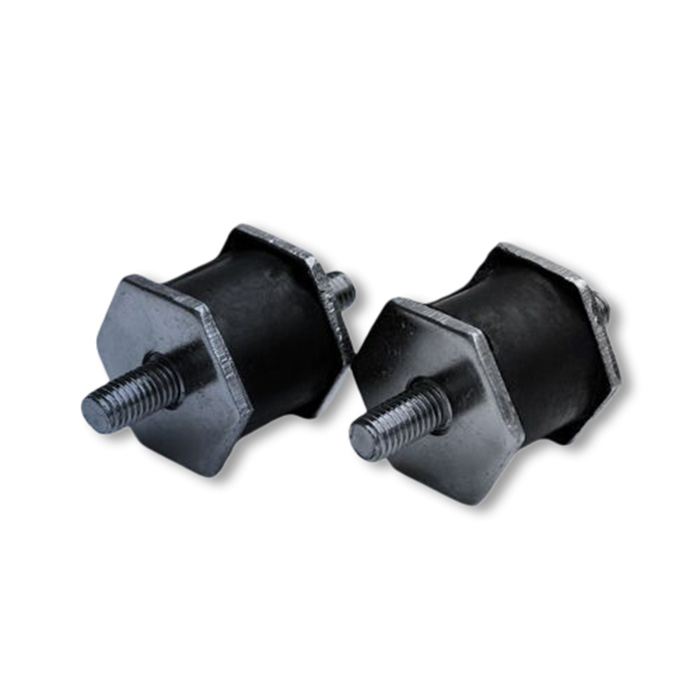

Pack of 4pcs-AH Hex. Mount (M/M), Ø15mm H16mm M6x16mm, NR 60 ShA Standard Steel

SKU

R4AH1516M616-2

Mount Type: AH (Male/Male)
Diameter: 15mm
Height: 16mm
Male Bolt Size: M6
Male Bolt Length: 16mm
Maximum Load Compression: 12.5Kg
Maximum Shear Load: 1.63Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.06Kg

The AH Hexagonal Bobbin Mounts are designed to offer outstanding vibration isolation and damping in a variety of applications. These mounts are engineered to provide superior performance and long-lasting durability, ensuring smoother operations for your machinery and equipment. Below are the key benefits:

More Information

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mount Type: AH (Male/Male)
Diameter: 15mm
Height: 16mm
Male Bolt Size: M6
Male Bolt Length: 16mm
Maximum Load Compression: 12.5Kg
Maximum Shear Load: 1.63Kg
Material: Natural Rubber (NR)
Metal Type: Standard Steel
Colour: Black
Weight: 0.04Kg

More Information

More Information
Kolor	Czarny
Twardość	60 ShA
Rodzaj metalu	Stal standardowa
Rodzaj Wibroizolatora	AH
Wydłużenie Przy Zerwaniu (%)	400
Materiał	Natural Rubber (NR)
Maksymalna temperatura (°C)	70
Minimalna temperatura (°C)	-25
Gęstość (g/cm³)	1.2
Wysokość (mm)	16
Średnica (mm)	15
Maksymalne obciążenie przy ściskaniu (kg)	12.5
Maksymalne Obciążenie Ścinające (kg)	1.63
Wytrzymałość Na Rozciąganie (MPa)	14 MPa
Wysokość (mm)	48
Tolerance Hardness (±)	5
Thread Length/Depth 1 (mm)	16
Thread Length/Depth 2 (mm)	16
Rozmiar gwintu 1	M6
Weight (kg)	0.04
