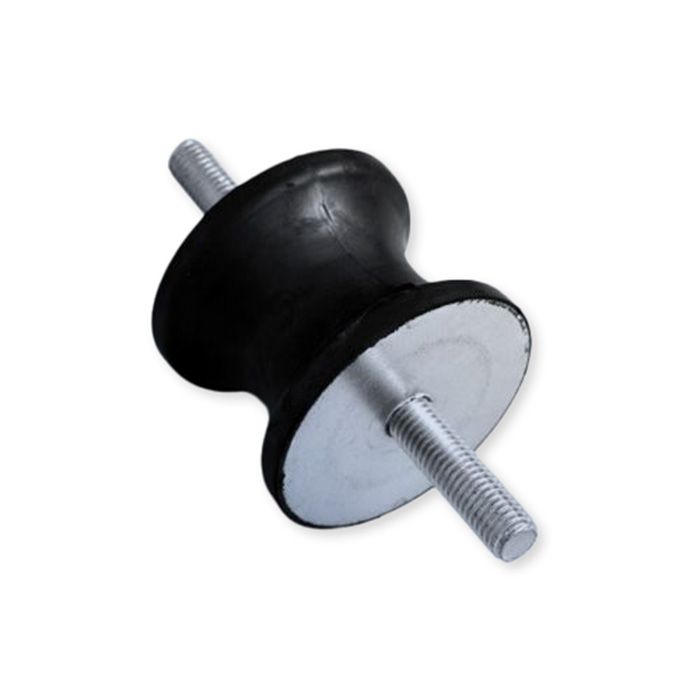

Pack of 4pcs-AD Waisted Mount (M/M), Ø10mm Height 10mm M4x10mm, NR 45 ShA Mild Steel
- Mount Type: AD (Male/Male)
- Diameter: 10mm
- Height: 10mm
- Male Bolt Size: M4
- Male Bolt Length: 10mm
- Maximum Load Compression: 4.38Kg
- Maximum Shear Load: 1.46Kg
- Material: Natural Rubber (NR)
- Hardness: 45 ShA
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.008Kg
The AD Mounts are designed to provide effective vibration isolation in a variety of industrial and commercial applications. Featuring a waisted rubber section and large diameter metal parts, these mounts offer enhanced bond strength, particularly when used in shear applications. The unique Diabolo-shaped rubber design allows for greater deflection and flexibility, making these mounts perfect for applications that require both compression and lateral movement.
- Mount Type: AD (Male/Male)
- Diameter: 10mm
- Height: 10mm
- Male Bolt Size: M4
- Male Bolt Length: 10mm
- Maximum Load Compression: 4.38Kg
- Maximum Shear Load: 1.46Kg
- Material: Natural Rubber (NR)
- Hardness: 45 ShA
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.12Kg
The AD Mounts are designed to provide effective vibration isolation in a variety of industrial and commercial applications. Featuring a waisted rubber section and large diameter metal parts, these mounts offer enhanced bond strength, particularly when used in shear applications. The unique Diabolo-shaped rubber design allows for greater deflection and flexibility, making these mounts perfect for applications that require both compression and lateral movement.
| Kolor | Czarny |
|---|---|
| Twardość | 45 ShA |
| Rodzaj metalu | Stal standardowa |
| Rodzaj Wibroizolatora | AD |
| Wydłużenie Przy Zerwaniu (%) | 450 |
| Materiał | Natural Rubber (NR) |
| Maksymalna temperatura (°C) | 70 |
| Minimalna temperatura (°C) | -25 |
| Gęstość (g/cm³) | 1.04 |
| Wysokość (mm) | 10 |
| Średnica (mm) | 10 |
| Maksymalne obciążenie przy ściskaniu (kg) | 4.38 |
| Maksymalne Obciążenie Ścinające (kg) | 0.657 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Wysokość (mm) | 30 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 10 |
| Thread Length/Depth 2 (mm) | 10 |
| Rozmiar gwintu 1 | M4 |
| Weight (kg) | 0.12 |
