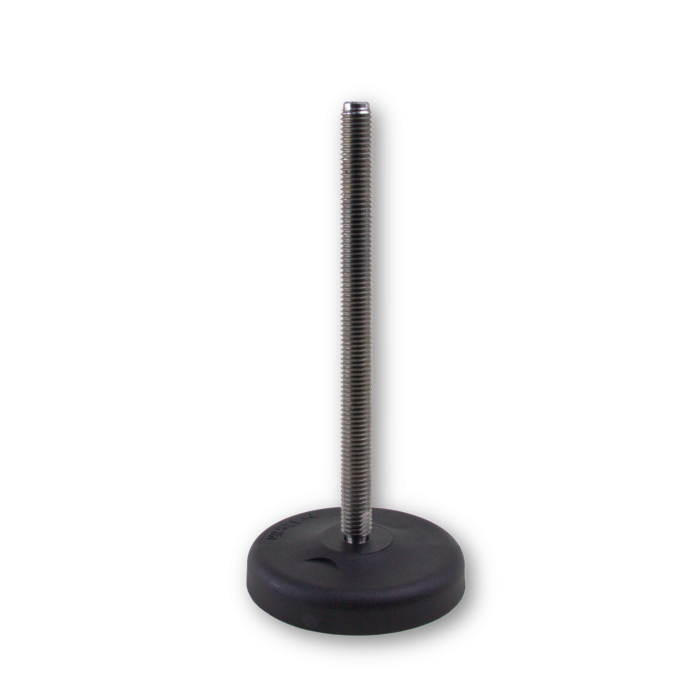

Pack of 2pcs-CVF Adjustable Polyamide Foot, Ø103mm H32mm M16x150mm, 30° Articulation, Std. Steel
SKU
R2CVF10332M16150
- Mount Type: CVF
- Diameter: 103mm
- Foot Height: 20mm
- Bolt Size: M16
- Bolt Length: 150mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
- Mount Type: CVF
- Diameter: 103mm
- Foot Height: 20mm
- Bolt Size: M16
- Bolt Length: 150mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
| Kolor | Czarny |
|---|---|
| Rodzaj metalu | Stal standardowa |
| Rodzaj Wibroizolatora | CVF |
| Materiał | Polyamide (PA) |
| Maksymalna temperatura (°C) | 90 |
| Minimalna temperatura (°C) | -20 |
| Wysokość (mm) | 32 |
| Średnica (mm) | 103 |
| Maksymalne obciążenie przy ściskaniu (kg) | 1834.9 |
| Maksymalne Obciążenie Ścinające (kg) | 611.6 |
| Wysokość (mm) | 182 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 150 |
| Thread Length/Depth 2 (mm) | 150 |
| Rozmiar gwintu 1 | M16 |
| Weight (kg) | 0.632 |
| Foot Height | 20.00 |
| Base Height | 32.00 |
| Hole Centres (mm) | 73 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
