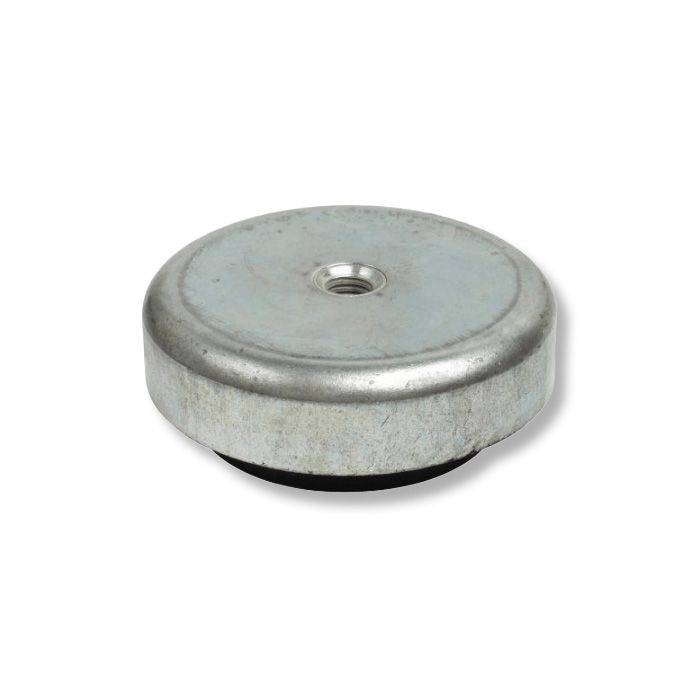

PA Fixed Height Mount Plate, Ø80mm H25mm NR 60 ShA Standard Steel 300kg Max Load

The PA Anti-Vibration Mount is a highly effective solution designed for machinery that does not require fastening to the floor. This mount is equipped with Female Levelling Foot Plates that can be easily screwed onto an existing thread, offering a simple yet efficient way to isolate vibrations and provide stability. These mounts are perfect for a wide range of machinery, ensuring minimal vibration transmission to the surrounding environment while offering a robust and long-lasting performance.

• Mount Type: PA
• Diameter: 80mm
• Foot Height: 25mm
• Female Bolt Size: M10
• Material: Natural Rubber (NR)
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.268Kg

Key Benefits

• Easy Installation: The PA Anti-Vibration Mount features a user-friendly design that allows for quick and easy installation without the need for floor fastening. Simply screw the mount onto an existing thread to secure your equipment.
• Effective Vibration Isolation: The mount provides excellent vibration isolation, absorbing vibrations from machinery and preventing them from transmitting to the surrounding structure, thus protecting both your equipment and the workspace.
• Enhanced Stability: By acting as a levelling foot, the PA Anti-Vibration Mount ensures your machinery stays stable during operation, which is critical for ensuring accurate performance and reducing wear and tear.
• Cost-Effective Solution: This mount offers a cost-effective approach to vibration isolation, providing a reliable solution at an affordable price point without compromising on quality.

Applications

• Lathes
• Presses
• CNC Milling Machines
• Injection Moulding Machines
• HVAC Equipment
• Conveyor Systems
• Medical and Laboratory Equipment

Additional Information

• Durable Construction: The PA Anti-Vibration Mount is built with high-quality materials, ensuring long-lasting performance even in demanding environments.
• Low Maintenance: These mounts are designed to require minimal maintenance, offering a hassle-free solution for machinery vibration isolation.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
