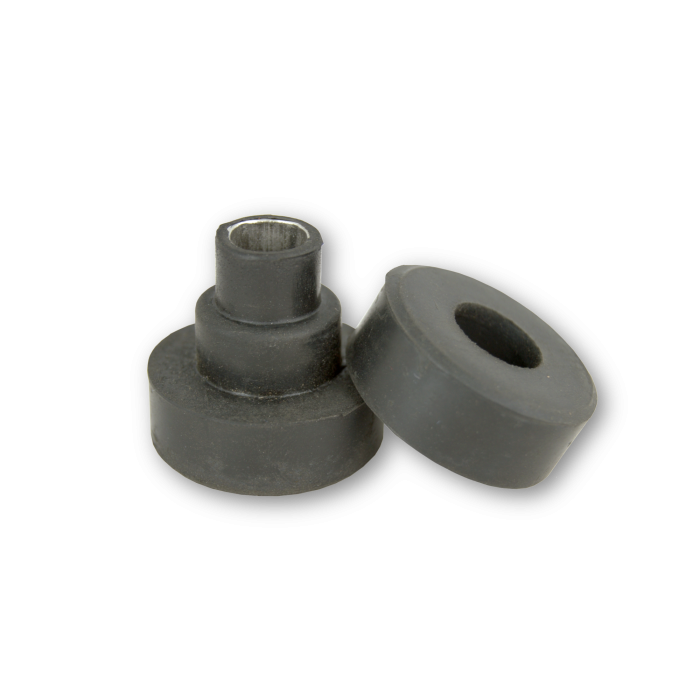

KPUM Rubber Mount, Ø32mm H32mm M10, NBR 35 ShA Standard Steel

KPUM Mounts are engineered for exceptional vibration isolation and shock absorption, ideal for agricultural, commercial, and military vehicles. Their robust design ensures dynamic isolation in traction and compression, enhancing reliability and durability. Easy to install, they offer a cost-effective solution that improves safety and extends equipment longevity.

• Mount Type: KPUM
• Diameter: 32mm
• Height: 32mm
• Material: Nitrile (NBR)
• Colour: Black
• Weight: 0.039Kg

Key Benefits

• Effective Vibration Isolation: The mushroom-shaped design is ideal for reducing vibrations, ensuring smoother and more stable operation for motors, cabins, and other machinery in challenging environments.
• High Shock Absorption: These mounts absorb considerable shock loads, providing robust protection for sensitive equipment and extending the lifespan of the machinery they support.
• Superior Dynamic Isolation: The KPUM mounts provide excellent dynamic isolation in both vertical traction and compression, ensuring that vibrations are effectively isolated in both directions.
• Reliability and Durability: Designed for heavy-duty applications, the KPUM Mounts are built to withstand harsh conditions and provide reliable performance over long periods of use.

Applications

• Agricultural Machinery
• Off-road and Earth Moving Machinery
• Military Vehicles:
• Building and Construction Equipment

Additional Information

• Easy Installation: The design of these mounts allows for easy installation, particularly in structures where through assembly is required, providing a hassle-free solution for a range of applications.
• Cost-effective Solution: These anti-vibration mounts offer a cost-effective solution for heavy-duty machinery, providing long-lasting performance and reducing maintenance costs by preventing vibration-related damage.
• Enhanced Safety: By significantly reducing vibrations, these mounts improve the overall safety and operational stability of equipment, reducing the risk of mechanical failure and protecting the operator.
• Improved Equipment Longevity: The mounts not only protect sensitive machinery from damage but also help extend the lifespan of critical components, lowering the need for frequent repairs or replacements.

Nitrile Rubber (NBR) compounds offer excellent resistance to petroleum-based oils, fuels, and greases, along with good performance in aliphatic and aromatic hydrocarbons. They are resistant to water, certain hydraulic fluids, and mild acids and alkalis. Nitrile also provides good abrasion and tear resistance, a low compression set, and reliable sealing performance over a wide temperature range.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C
• Recommended temperature range: -30°C to +100°C

Chemical Resistance

Good resistance to:

• Petroleum-based oils, fuels, and greases
• Hydrocarbon-based fuels and hydraulic fluids (mineral oil and some phosphate ester types)
• Mild acids and alkalis
• Water and steam up to 100°C
• Ozone and weathering

Not compatible with:

• Strong oxidizing agents
• Ketones
• Esters
• Chlorinated hydrocarbons
