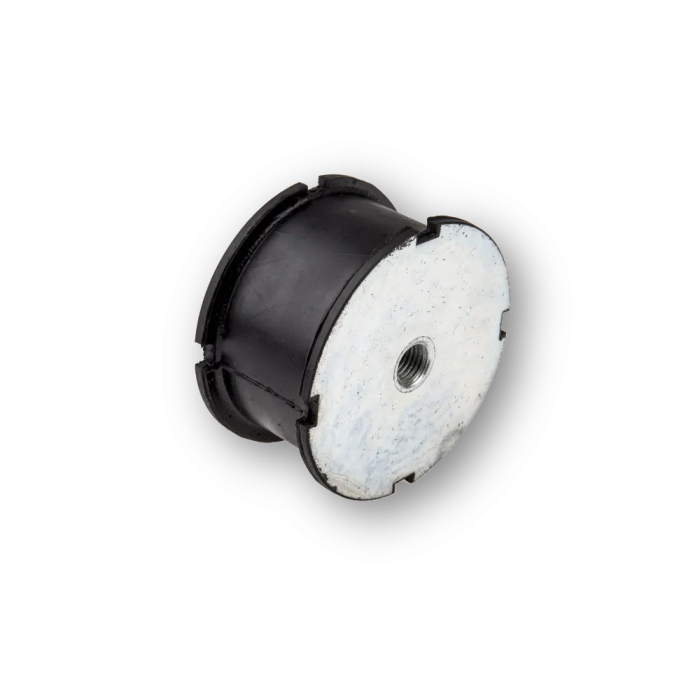

KBRC Cyl. Mount (M/M), Ø105mm H55mm M16x16mm, NR 50 ShA Standard Steel

KBRC Compactor Mounts are engineered for high torsion and shear stress, ensuring superior vibration isolation in demanding environments. Featuring secure notches for easy installation, these durable mounts protect sensitive machinery, enhance performance, and reduce maintenance costs.

• Mount Type: KBRC (Female/Female)
• Diameter: 105mm
• Height: 55mm
• Female Bolt Size: M16
• Female Bolt Depth: 16mm
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.785Kg

Key Benefits

• High Torsion and Shear Stress Resistance: Designed to withstand significant torsion and shear forces, these mounts offer robust vibration isolation, ensuring durability even under high-stress conditions.
• Easy Installation: The special notches in the metal disc make installation quick and simple, allowing the mounts to be securely fixed, preventing any unwanted rotation during operation.
• Enhanced Vibration Isolation: The KBRC Compactor Mounts are specifically engineered to isolate vibrations, protecting sensitive equipment from damage, reducing wear, and improving the overall efficiency of machinery.
• Long-Lasting Durability: Made from high-quality materials, these mounts provide long-term performance, even in the most demanding environments, reducing the need for frequent replacements.
• Optimal for Twisting and Oscillating Movements: Ideal for applications with twisting or oscillating movements, offering superior vibration isolation compared to standard mounts.

Applications

• Automotive
• Agricultural Machinery
• Construction Equipment
• HVAC Systems
• Compressors and Generators
• Railway Systems
• Electric Motors
• Renewable Energy
• Instrumentation:
• Medical and Laboratory Equipment:

Additional Information

• Cost-Effective Solution: By reducing the need for frequent maintenance and replacements, these mounts provide a cost-effective solution for long-term vibration isolation needs.
• Robust Construction: Built with durable materials, these mounts are designed to endure harsh conditions and offer reliable performance over time, even in high-torque and high-stress environments.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
