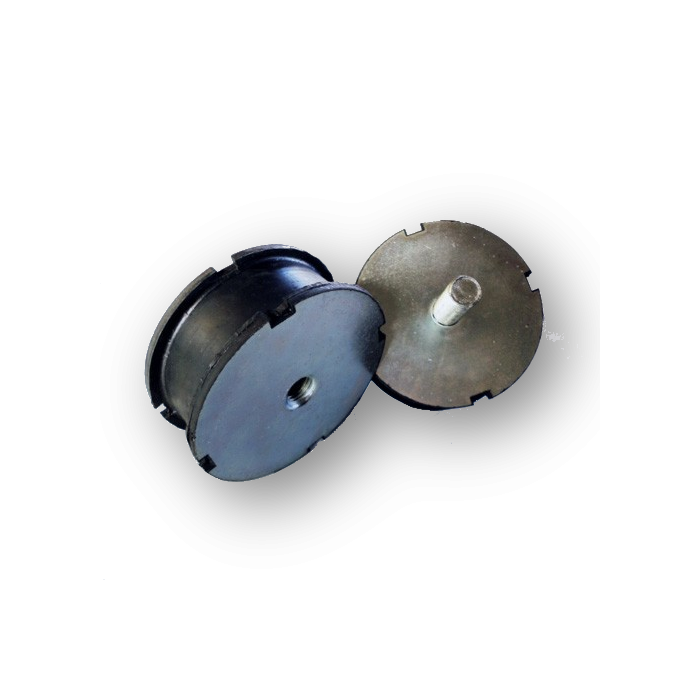

KBRB Cyl. Mount (M/M), Ø105mm H40mm M16x41mm, NR 50 ShA Standard Steel

KBRB Compactor Mounts provide exceptional isolation against high torsion and shear stress, perfect for machinery subjected to twisting and oscillating movements. Featuring easy installation with notches for secure fixing, these durable mounts enhance vibration isolation, ensuring long-term performance across various industries.

• Mount Type: KBRB (Male/Female)
• Diameter: 105mm
• Height: 40mm
• Male Bolt Size: M16
• Male Bolt Length: 41mm
• Female Bolt Size: M16mm
• Female Bolt Depth: 16mm
• Material: Natural Rubber (NR)
• Colour: Black

Key Benefits

• High Torsion and Shear Stress Resistance: KBRB Compactor Mounts are engineered to withstand high levels of torsion and shear stress, ensuring reliable performance even in challenging conditions.
• Easy Installation: With specially designed notches in the metal disc, these mounts can be securely fixed, preventing any rotation during operation for added stability.
• Enhanced Vibration Isolation: Effectively isolates vibrations, protecting machinery and reducing wear, which helps extend the lifespan of components.
• Durability: Manufactured from high-quality materials, these mounts are built to endure continuous stress and offer long-term performance in demanding environments.
• Flexibility in Application: Suitable for a wide range of applications where twisting, oscillating movements, or high shear stress are present, offering reliable vibration isolation where it is most needed.

Applications

• Automotive
• Agricultural Equipment
• Construction Equipment:.
• HVAC Systems
• Compressors and Generators
• Railway
• Electric Motors
• Renewable Energy
• Generators

Additional Information

• Long-Term Durability: These mounts are designed for long-lasting use, even in the most demanding applications, reducing the need for frequent replacements.
• Cost-Effective Solution: Offering superior performance at an affordable price, KBRB Compactor Mounts deliver long-term value by protecting equipment and reducing maintenance costs.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
