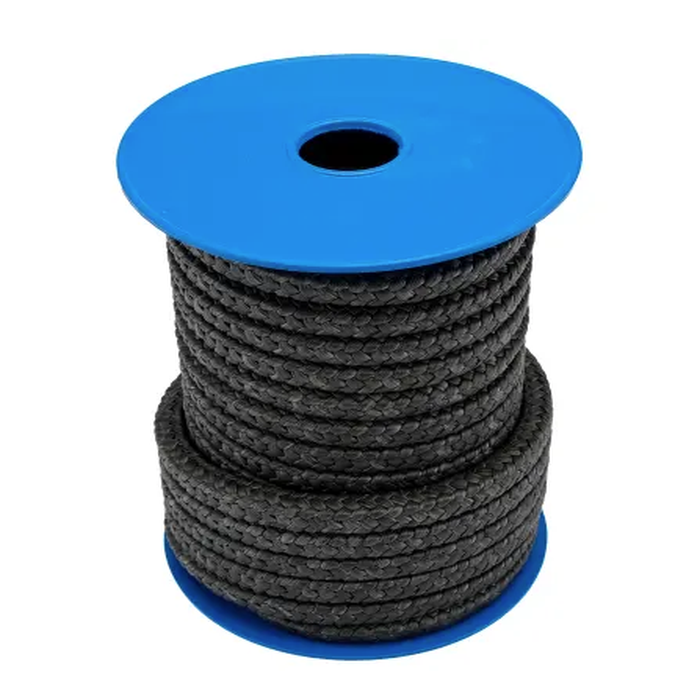

Gland Packing Type GLP120S 8mm x 8m Length

Graphite/PTFE Gland Packing is a high-performance sealing material made by blending expanded graphite and polytetrafluoroethylene (PTFE) fibers. This combination offers excellent thermal conductivity, chemical resistance, and low friction, making it ideal for dynamic sealing applications in pumps, valves, and rotating equipment. It is commonly used in industries such as chemical processing, power generation, and oil & gas.

• Material: PTFE/Graphite
• Width: 8mm
• Roll Length: 8m
• Min. Temp: -100°C
• Max. Temp: 280°C
• Colour: Black
• Max. Pressure: 25000kPa

Key Benefits

• High Thermal Conductivity: Excellent heat dissipation.
• Chemical Resistance: Inert to a wide range of corrosive chemicals, acids, alkalis, and solvents.
• Low Friction Coefficient: Reduces shaft and sleeve wear, enhancing the lifespan of rotating equipment.
• Excellent Sealing Capability: Offers tight, reliable sealing with minimal leakage.
• Flexible and Conformable: Adapts easily to shaft misalignments or imperfections, improving sealing efficiency.
• Self-Lubricating Properties: Ensures smooth operation without the need for external lubrication.
• High Pressure Tolerance: Performs well in both low and high-pressure systems.
• Non-Hardening and Non-Brittle: Maintains integrity over time without becoming brittle or breaking down.

Applications

• Rotating Equipment
• Valves
• Chemical processing
• Petrochemical and refineries
• Power generation (including nuclear and thermal)
• Pulp and paper
• Food and beverage (where applicable and compliant)
• Marine and offshore

Additional Information

Meets industry standards like API, or other international specifications
