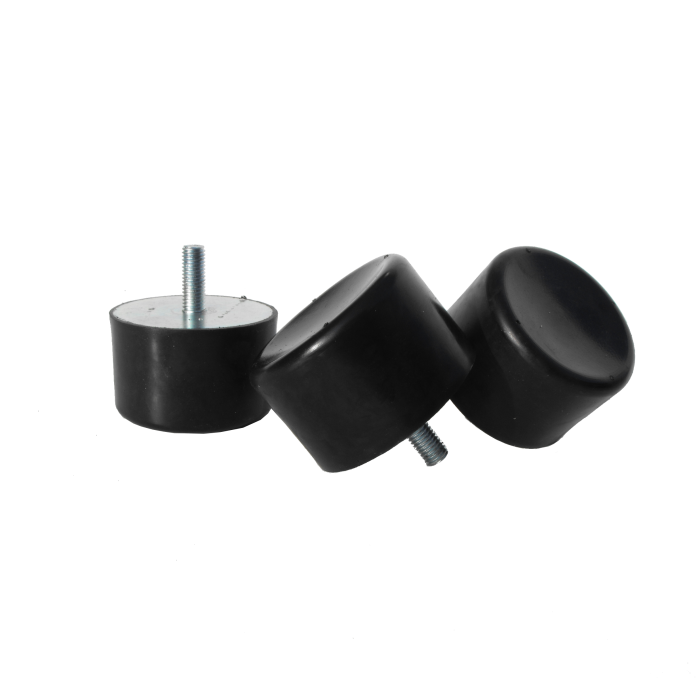

DS Concave Buffer/foot Mounting, Ø50mm H28mm M10x28mm, NR 60 ShA Standard Steel

The DS Concave Buffer and Foot has a high grip concave surface which ensures stability, while the progressive bump stop design absorbs shocks gradually. Durable and versatile, it's perfect for lathes, CNC machines, and more. Easy to install and cost-effective.

• Mount Type: DS (Male)
• Diameter: 50mm
• Height: 28mm
• Male Bolt Size: M10
• Male Bolt Length: 28mm
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.095Kg

Key Benefits

• High Grip Suction: The concave surface of the DS Concave Mount ensures excellent grip, providing secure and stable isolation even in high-vibration environments.
• Effective Vibration Isolation: Designed to minimise the impact of vibrations, these mounts effectively reduce noise and prevent damage to equipment, increasing longevity and reducing wear on sensitive components.
• Progressive Energy Absorption: The DS Concave Mount design absorbs shocks gradually, ensuring smooth operation and preventing abrupt deceleration that could cause damage to the equipment.
• Durable and Long-Lasting: Constructed to withstand demanding conditions, these mounts offer long-lasting performance, making them a cost-effective solution for vibration isolation in heavy-duty applications.
• Versatile Use: Ideal for applications where equipment cannot be fixed to its environment, allowing for mobility and flexibility while maintaining stability and reducing vibrations.

Applications

• Lathes
• CNC Machines
• Presses
• Laboratory Equipment
• Electric Motors
• Instrumentation and Medical Equipment

Additional Information

• Easy Installation: Designed for ease of use, these mounts can be quickly installed in a variety of equipment without the need for permanent fixing, allowing for mobility and flexibility in different setups.
• Cost-Effective and Long-Lasting: Offering high performance at an affordable price, the DS Concave Mount provides excellent value by extending the lifespan of equipment and reducing the need for maintenance.
• Reliable Performance in High-Impact Applications: Ideal for use in high-impact environments where vibration isolation and energy absorption are essential for protecting machinery and ensuring smooth operation.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
