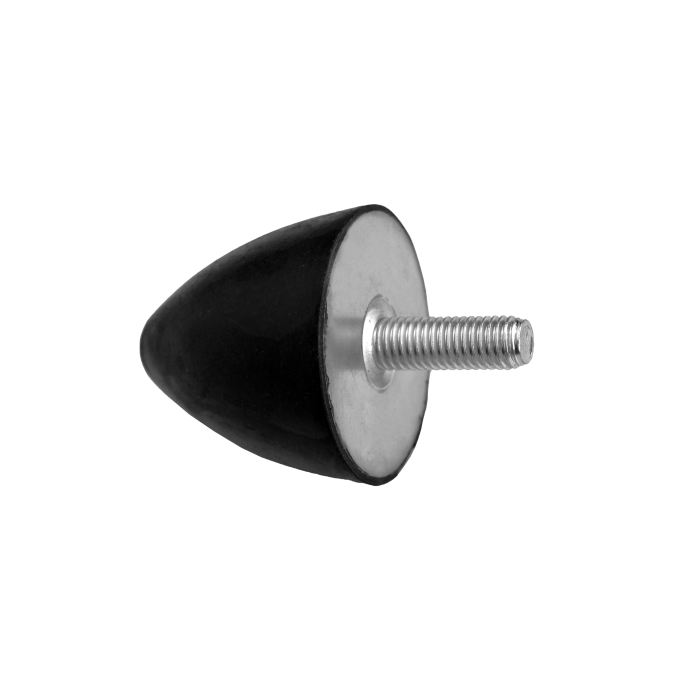

DP Parabolic Buffer (M), Ø50mm H50mm M10x25mm, EPDM 50 ShA Standard Steel

DP Male Parabolic Buffer Stops absorb progressive energy making them ideal for high-impact applications. They protect equipment from damage and are versatile across industries like automotive and construction. Available in various sizes, they offer easy installation and long-lasting performance.

• Mount Type: DP (Male)
• Diameter: 50mm
• Height: 50mm
• Male Bolt Size: M10
• Male Bolt Length: 25mm
• Material: EPDM
• Colour: Black
• Weight: 0.107Kg

Applications

• Automotive
• Agricultural Machinery
• Construction Equipment
• HVAC Systems
• Compressors and Generators
• Railway
• Electric Motors
• Renewable Energy
• Medical and Laboratory Equipment

Additional Information

• Available in Various Sizes: The DP Male Studded Progressive Parabolic Buffer Stops come in a wide range of sizes and configurations to suit different applications and load requirements.
• High-Quality Materials: Manufactured using high-quality rubber compounds and durable metal inserts, these buffer stops offer long-lasting performance even under demanding conditions.
• Easy Installation: These buffer stops are designed for easy installation, helping reduce downtime during machinery maintenance or upgrades.
• Cost-Effective Solution: Offering a highly effective and durable solution for vibration isolation and shock absorption, these bump stops provide excellent value for a wide range of industrial applications.

EPDM compounds offer excellent resistance to weathering, ozone, and aging, with stable performance across a wide temperature range. They provide outstanding resistance to water, steam, and many polar solvents, as well as brake fluids and phosphate-ester-based hydraulic fluids. EPDM maintains flexibility, resilience, and mechanical strength under thermal and chemical stress. Performs reliably in outdoor, automotive, and industrial applications where long-term durability and resistance to compression set are required.

Temperature Range

• Up to 150°C (Intermittent)
• Down to -45°C
• Recommended temperature range: -40°C to +120°C

Chemical Resistance

Good resistance to:

• Hot water and steam up to 149°C (with special compounds up to 260°C)
• Glycol-based brake fluids (DOT 3 & 4) and silicone-based brake fluids (DOT 5) up to 149°C
• Many organic and inorganic acids
• Cleaning agents, sodium and potassium alkalis
• Phosphate-ester based hydraulic fluids (HFD-R)
• Silicone oil and grease
• Many polar solvents (alcohols, ketones, esters)
• Ozone, aging, and weather resistant

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
