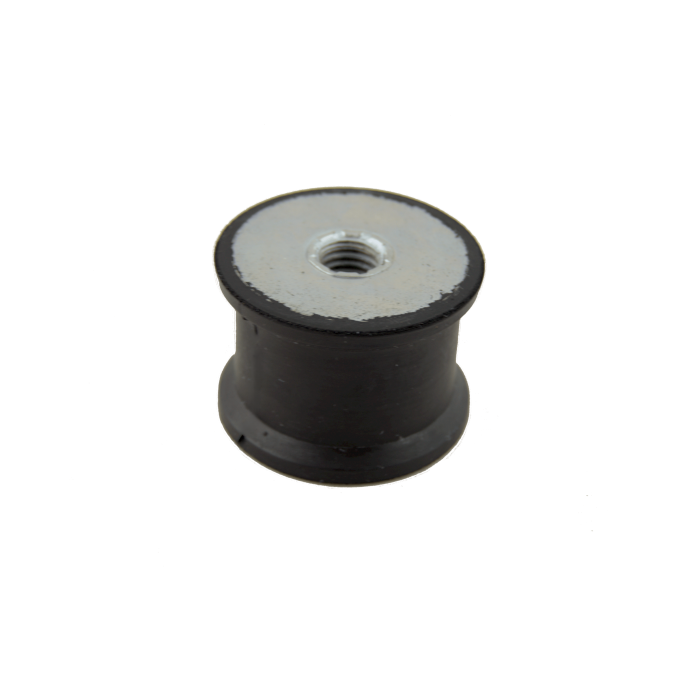

CF Shear Mount (F/F), Ø20mm Height 40mm M6x6mm, NBR 45 ShA Standard Steel

CF Type Shear Mount ensure effective vibration isolation. Featuring rubber bonded to metal parts for durability, these mounts provide stability under pressure, adapt to different sizes, and are easy to install—ideal for automotive, HVAC, and more.

• Mount Type: CF (Female/Female)
• Diameter: 20mm
• Height: 40mm
• Female Bolt Size: M6
• Female Bolt Depth: 6mm
• Maximum Load Compression: 24.5Kg
• Maximum Shear Load: 8.17Kg
• Material: Nitrile (NBR)
• Colour: Black
• Weight: 0.04Kg

Key Benefits

• Enhanced Vibration Isolation: These mounts are specifically designed to absorb and isolate vibrations, making them perfect for reducing the impact of vibrations on sensitive machinery and equipment.
• Increased Material Displacement: The CF Shear Mounts allow for more material displacement, ensuring better deflection and shock absorption during operation, while maintaining stability even under pressure.
• Long-Lasting Durability: The robust design and material options offer superior fatigue resistance, making these mounts suitable for use in demanding applications with long-term performance requirements.
• Adaptability to Various Applications: Available in a range of sizes and hardness levels, these mounts are adaptable for a variety of industries and applications, offering flexibility in design and functionality.

Applications

• Automotive
• Agricultural Machinery
• Construction Equipment
• HVAC Systems
• Compressors and Generators
• Railway
• Electric Motors
• Renewable Energy
• Medical and Laboratory Equipment

Additional Information

• Easy Installation: These mounts are designed for easy installation, helping to reduce downtime and improve the efficiency of machinery and equipment maintenance.
• Cost-Effective Solution: With a simple yet effective design, the CF Shear Mounts offer a cost-efficient solution for vibration isolation across a wide range of industries.

Nitrile Rubber (NBR) compounds offer excellent resistance to petroleum-based oils, fuels, and greases, along with good performance in aliphatic and aromatic hydrocarbons. They are resistant to water, certain hydraulic fluids, and mild acids and alkalis. Nitrile also provides good abrasion and tear resistance, a low compression set, and reliable sealing performance over a wide temperature range.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C
• Recommended temperature range: -30°C to +100°C

Chemical Resistance

Good resistance to:

• Petroleum-based oils, fuels, and greases
• Hydrocarbon-based fuels and hydraulic fluids (mineral oil and some phosphate ester types)
• Mild acids and alkalis
• Water and steam up to 100°C
• Ozone and weathering

Not compatible with:

• Strong oxidizing agents
• Ketones
• Esters
• Chlorinated hydrocarbons
