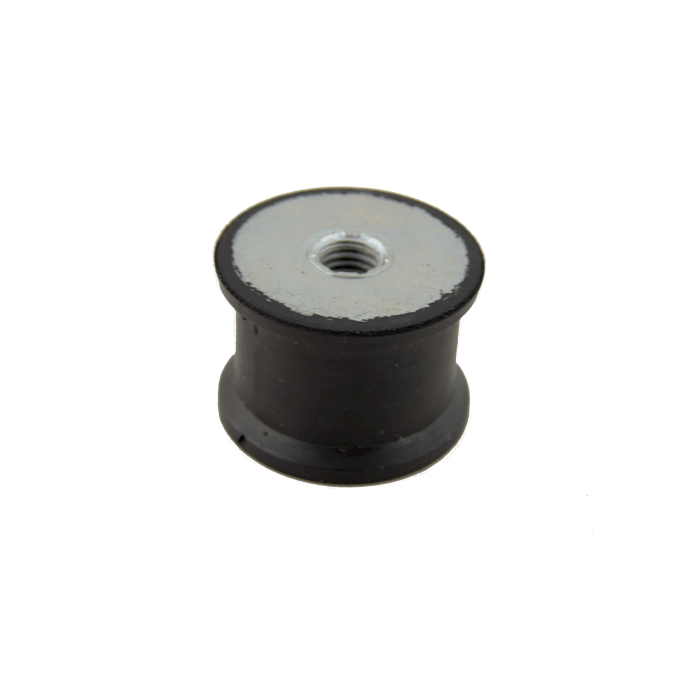

CF Shear Mount (F/F), Ø100mm Height 75mm M16x16mm, NR 60 ShA Standard Steel

CF Type Shear Mount ensure effective vibration isolation. Featuring rubber bonded to metal parts for durability, these mounts provide stability under pressure, adapt to different sizes, and are easy to install—ideal for automotive, HVAC, and more.

• Mount Type: CF (Female/Female)
• Diameter: 100mm
• Height: 75mm
• Female Bolt Size: M16
• Female Bolt Depth: 16mm
• Maximum Load Compression: 538Kg
• Maximum Shear Load: 179.33Kg
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.901Kg

Key Benefits

• Enhanced Vibration Isolation: These mounts are specifically designed to absorb and isolate vibrations, making them perfect for reducing the impact of vibrations on sensitive machinery and equipment.
• Increased Material Displacement: The CF Shear Mounts allow for more material displacement, ensuring better deflection and shock absorption during operation, while maintaining stability even under pressure.
• Long-Lasting Durability: The robust design and material options offer superior fatigue resistance, making these mounts suitable for use in demanding applications with long-term performance requirements.
• Adaptability to Various Applications: Available in a range of sizes and hardness levels, these mounts are adaptable for a variety of industries and applications, offering flexibility in design and functionality.

Applications

• Automotive
• Agricultural Machinery
• Construction Equipment
• HVAC Systems
• Compressors and Generators
• Railway
• Electric Motors
• Renewable Energy
• Medical and Laboratory Equipment

Additional Information

• Easy Installation: These mounts are designed for easy installation, helping to reduce downtime and improve the efficiency of machinery and equipment maintenance.
• Cost-Effective Solution: With a simple yet effective design, the CF Shear Mounts offer a cost-efficient solution for vibration isolation across a wide range of industries.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
