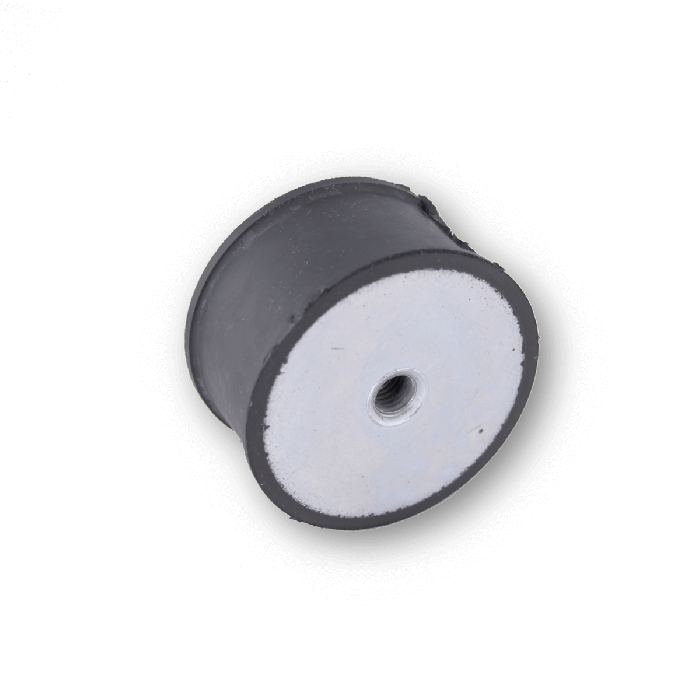

CD Waisted Mount (F/F), Ø40mm Height 28mm M10x10mm, CR 45 ShA Standard Steel

Waisted Bobbin Mounts provide superior vibration isolation with enhanced lateral displacement while maintaining vertical stability. Made from durable rubber, these mounts absorb vibrations effectively, making them perfect for automotive, HVAC, and medical applications. Easy to install and available in various sizes, they ensure reliable performance in demanding conditions.

• Mount Type: CD (Female/Female)
• Diameter: 40mm
• Height: mm
• Female Bolt Size: M10
• Female Bolt Depth: 10mm
• Maximum Load Compression: 284Kg
• Maximum Shear Load: 42.6Kg
• Material: Chloroprene (CR)
• Colour: Black
• Weight: 0.112Kg

Key Benefits

• Enhanced Lateral Vibration Isolation: The waisted design allows for greater lateral displacement, improving vibration absorption in horizontal directions.
• Vertical Stability: Despite the increased lateral deflection, the mount remains securely positioned within the vertical plane, ensuring consistent performance.
• Low Shear Stiffness: The design features low shear stiffness, which improves the mount's ability to absorb vibrations and reduce wear on sensitive components.
• Durable and Reliable: Made from high-quality rubber, these mounts provide long-lasting durability even under demanding conditions.
• Versatile Performance: Ideal for use in a wide variety of applications, offering flexibility in vibration isolation for various machinery and equipment types.

Applications

• Automotive
• Agricultural
• Construction Equipment
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical
• Laboratory Equipment:

Additional Information

• Customisable Options: Available in different sizes and configurations to meet your specific needs and installation requirements.
• Effective Vibration Isolation: Ideal for machines and equipment that experience lateral movement, ensuring effective reduction of vibration and noise.
• Easy Installation: The mounts are designed for straightforward installation, providing a quick and efficient solution to vibration isolation challenges.

CR (Chloroprene Rubber / Neoprene) offers excellent resistance to weathering, ozone, and aging, with stable performance over a wide temperature range. It provides good resistance to moderate oils, fuels, and greases, as well as many hydraulic fluids and refrigerants. CR maintains mechanical strength, resilience, and flexibility under thermal and chemical stress. Performs well in applications exposed to sunlight, saltwater, and outdoor conditions, with strong dimensional stability and resistance to compression set. Its balanced physical properties make it suitable for demanding industrial and chemical environments where long-term durability is required.

Temperature Range

• Continuous service: –30°C to +120°C
• Intermittent peaks: up to +130°C
• Special compounds may extend high-temperature resistance up to +150°C

Chemical Resistance

Good resistance to:

• Moderate petroleum-based oils, greases, and fuels
• Hydraulic fluids (some mineral and phosphate ester types)
• Alcohols, ketones, and mild acids and alkalis
• Ozone, weathering, and sunlight

Not compatible with:

• Strong acids and alkalis
• Aromatic hydrocarbons
• Concentrated ketones
• Strong oxidizing agents
