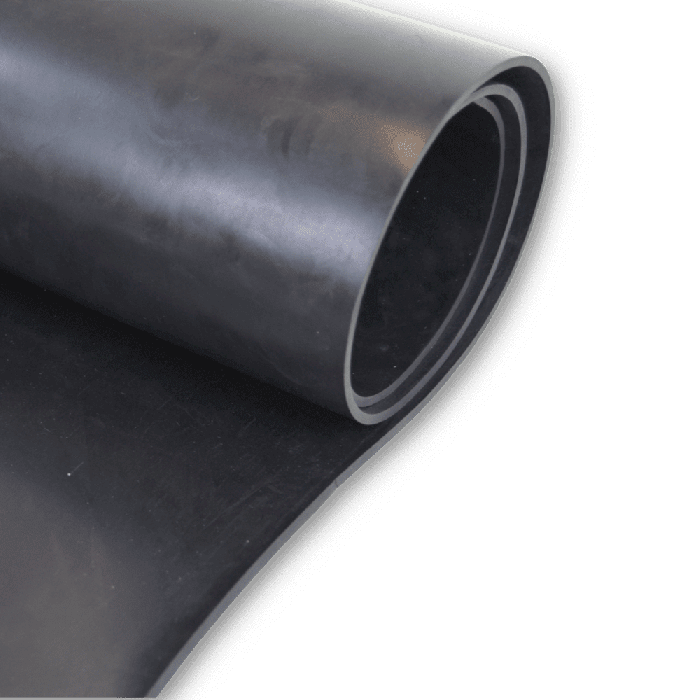

Bridge Bearing BS5400 EN 1337 NR, 1.4m Wide x 5mm Thick, Black 60 ShA
SKU
1059471
- Width: 1.4m x Thickness: 5mm x Length: up to 10m
- Material: SBR/NR
- Hardness: 60 ShA
- Colour: Black
- Weight: 8.75kg per metre
- Temperature Range: Min: -20°C, Max: 70°C
Our vulcanized natural rubber offers enhanced tensile strength and elongation at break, making it ideal for bridge bearing pads and demanding construction applications. With customisation options and excellent temperature resilience, this durable material is perfect for various projects, ensuring optimal performance and reliability.
Bridge Bearing BS5400 EN 1337 NR, 1.4m Wide x 5mm Thick, Black 60 ShA
- Width: 1.4m x Thickness: 5mm x Length: up to 10m
- Material: SBR/NR
- Hardness: 60 ShA
- Colour: Black
- Weight: 8.75kg per metre
- Temperature Range: Min: -20°C, Max: 70°C
Key Features
- Enhanced Mechanical Properties: Our vulcanized natural rubber boasts superior tensile strength and elongation at break, ensuring durability in demanding applications. This high-performance elastomeric bearing material meets the stringent BS 5400 standards, making it an ideal choice for bridge bearing pads.
- Controlled Specifications: Engineered to comply with EN 1337 standards, our natural rubber offers precise calculations for stress and strain assessments, ensuring optimal performance in construction applications.
- Exceptional Resistance: This natural rubber sheet is designed with high tear strength and excellent abrasion resistance, making it suitable for challenging environments, including construction and mining sectors.
- Temperature Resilience: With a temperature range from -20°C to 70°C, our organic rubber maintains its performance and integrity in various climatic conditions.
- Customisation Options: We provide a full customisation service, allowing you to have the material cut into specific strips or gaskets tailored to your project needs. Choose from our standard or self-adhesive backing options for added convenience.
Note: This natural rubber is not suitable for contact with oils, chemicals, or acids.
Applications
- Bridge Bearing Pads: Ideal for manufacturing elastomeric bearings, our natural gum rubber meets the specific requirements for bridge construction, ensuring safety and stability.
- Construction and Mining: Perfect for lining chutes, hoppers, and other equipment, this durable natural rubber is recognised for its low abrasion resistance values, making it effective and reliable in heavy-duty applications.
Additional Details
- Available for purchase per linear metre, allowing for flexible ordering to suit your project needs.
- Self-adhesive backing available for easy application.
- Contact us for bespoke solutions tailored to your specifications.
Contact Us
For more information, please contact our sales team at 01420 474123.
| Application | Bridge Bearing, Construction |
|---|---|
| Materiał | SBR/NR |
| Gęstość (g/cm³) | 1.25 |
| Szerokość | 1400 |
| Długość (mm) | 1000 |
| Długość Rolki (m) | 10 |
| Grubość (mm) | 5 |
| Tolerance Thickness (±mm) | 0.55 |
| Tolerance Width (±mm) | 42 |
| Twardość | 60 ShA |
| Tolerance Hardness (±) | ±5 |
| Kolor | Czarny |
| Maksymalna temperatura (°C) | 70 |
| Minimalna temperatura (°C) | -20 |
| Density Tolerance (%) | ±5 |
| Wytrzymałość Na Rozciąganie (MPa) | 15.5 MPa |
| Wydłużenie Przy Zerwaniu (%) | 400 |
| Abrasion Resistance (DIN53516) | 120 mm³ |
| Odkształcenia Trwałe Po Ucisku (%) | 30 |
| Parametry Testu Odkształceń Trwałych Po Ucisku | (70° C/24 hrs/25% Set) (Max) |
| Sold by the metre | Yes |
| Weight (kg) | 8.75 |
| Forma | Roll |
*Dimensions can vary, they are typical only. The width of rolls has a tolerance of ±3%, while the roll lengths have a tolerance of ±5%
