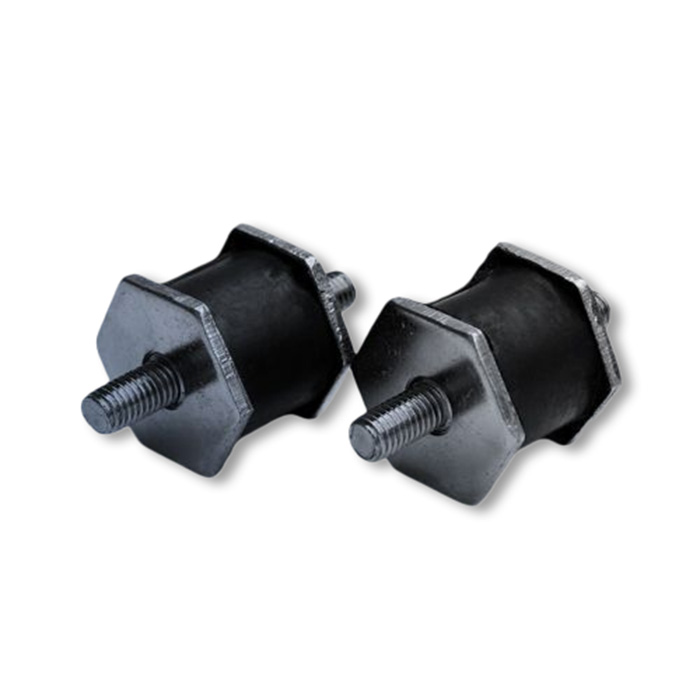

AH Hex. Mount (M/M), Ø32mm H27mm M8x15mm, NR 60 ShA Standard Steel

AH Hexagonal Bobbin Mounts provide exceptional vibration isolation with heavy-duty construction for durability. Their hexagonal design ensures stability under vertical loads and allows for easy installation using a spanner. Versatile across industries, these mounts are perfect for automotive, construction, HVAC, and more.

• Mount Type: AH (Male/Male)
• Diameter: 32mm
• Height: 27mm
• Male Bolt Size: M8
• Male Bolt Length: 15mm
• Maximum Load Compression: 11.32Kg
• Maximum Shear Load: 1.13Kg
• Material: Natural Rubber (NR)
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.065Kg

Key Benefits

• Heavy Duty Construction: Made from high-quality materials, our rubber bobbin mounts are robust and built to withstand the demands of heavy-duty machinery and equipment.
• Vertical Compression Load Capacity: The hexagonal design is specifically suited for applications where the primary load is in vertical compression, ensuring stability and reliability.
• Easy Installation: The hexagonal fittings are designed for easy tightening with a spanner, allowing for quick and secure installation in various machinery setups.
• High Durability: These mounts are resistant to wear, providing long-term performance even in challenging environments, making them ideal for industrial use.

Applications

The AH Hexagonal Bobbin Mounts are versatile and can be used in a wide range of applications across several industries. These mounts are especially effective for applications where vibration isolation is essential for performance and safety. Key applications include:

• Automotive
• Agricultural
• Construction Equipment
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation

Additional Information

The AH Hexagonal Bobbin Mounts are specifically designed for use in applications where vertical compression is the primary load. Their hexagonal shape allows for secure tightening with a spanner, providing ease of installation and ensuring a tight fit. These mounts are highly effective for:

• Shock Mountings:Ideal for shock absorption in various industrial equipment, ensuring minimal vibration transfer and maximum protection for sensitive components.
• High-Performance Materials: These mounts are constructed from high-quality rubber, ensuring durability and long-term performance even under tough conditions.
• Temperature Resistance: The mounts are designed to perform effectively in various temperature ranges, making them suitable for diverse industrial environments.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
