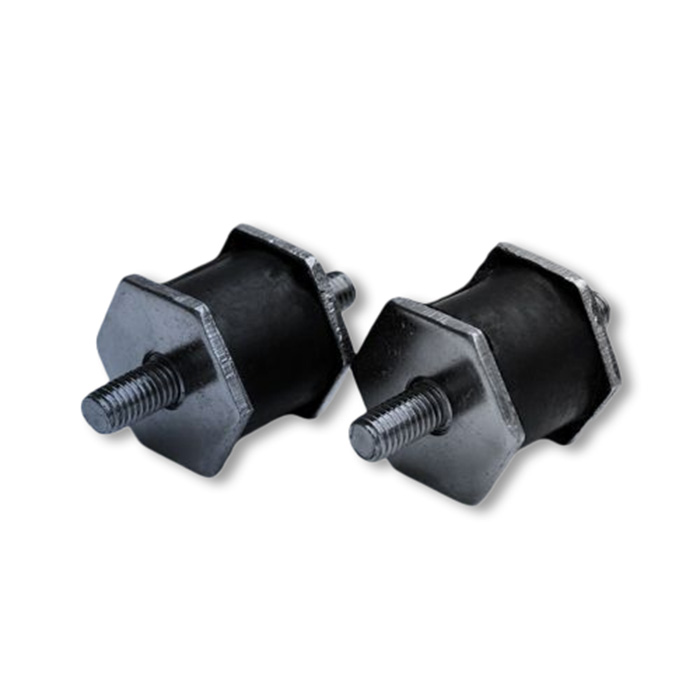

AH Hex. Mount (M/M), Ø32mm H27mm M10x20mm, EPDM 50 ShA Standard Steel

AH Hexagonal Bobbin Mounts provide exceptional vibration isolation with heavy-duty construction for durability. Their hexagonal design ensures stability under vertical loads and allows for easy installation using a spanner. Versatile across industries, these mounts are perfect for automotive, construction, HVAC, and more.

• Mount Type: AH (Male/Male)
• Diameter: 32mm
• Height: 27mm
• Male Bolt Size: M10
• Male Bolt Length: 20mm
• Maximum Load Compression: 7.18Kg
• Maximum Shear Load: 0.72Kg
• Material: EPDM
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.094Kg

Key Benefits

• Heavy Duty Construction: Made from high-quality materials, our rubber bobbin mounts are robust and built to withstand the demands of heavy-duty machinery and equipment.
• Vertical Compression Load Capacity: The hexagonal design is specifically suited for applications where the primary load is in vertical compression, ensuring stability and reliability.
• Easy Installation: The hexagonal fittings are designed for easy tightening with a spanner, allowing for quick and secure installation in various machinery setups.
• High Durability: These mounts are resistant to wear, providing long-term performance even in challenging environments, making them ideal for industrial use.

Applications

The AH Hexagonal Bobbin Mounts are versatile and can be used in a wide range of applications across several industries. These mounts are especially effective for applications where vibration isolation is essential for performance and safety. Key applications include:

• Automotive
• Agricultural
• Construction Equipment
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation

Additional Information

The AH Hexagonal Bobbin Mounts are specifically designed for use in applications where vertical compression is the primary load. Their hexagonal shape allows for secure tightening with a spanner, providing ease of installation and ensuring a tight fit. These mounts are highly effective for:

• Shock Mountings:Ideal for shock absorption in various industrial equipment, ensuring minimal vibration transfer and maximum protection for sensitive components.
• High-Performance Materials: These mounts are constructed from high-quality rubber, ensuring durability and long-term performance even under tough conditions.
• Temperature Resistance: The mounts are designed to perform effectively in various temperature ranges, making them suitable for diverse industrial environments.

EPDM compounds offer excellent resistance to weathering, ozone, and aging, with stable performance across a wide temperature range. They provide outstanding resistance to water, steam, and many polar solvents, as well as brake fluids and phosphate-ester-based hydraulic fluids. EPDM maintains flexibility, resilience, and mechanical strength under thermal and chemical stress. Performs reliably in outdoor, automotive, and industrial applications where long-term durability and resistance to compression set are required.

Temperature Range

• Up to 150°C (Intermittent)
• Down to -45°C
• Recommended temperature range: -40°C to +120°C

Chemical Resistance

Good resistance to:

• Hot water and steam up to 149°C (with special compounds up to 260°C)
• Glycol-based brake fluids (DOT 3 & 4) and silicone-based brake fluids (DOT 5) up to 149°C
• Many organic and inorganic acids
• Cleaning agents, sodium and potassium alkalis
• Phosphate-ester based hydraulic fluids (HFD-R)
• Silicone oil and grease
• Many polar solvents (alcohols, ketones, esters)
• Ozone, aging, and weather resistant

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
