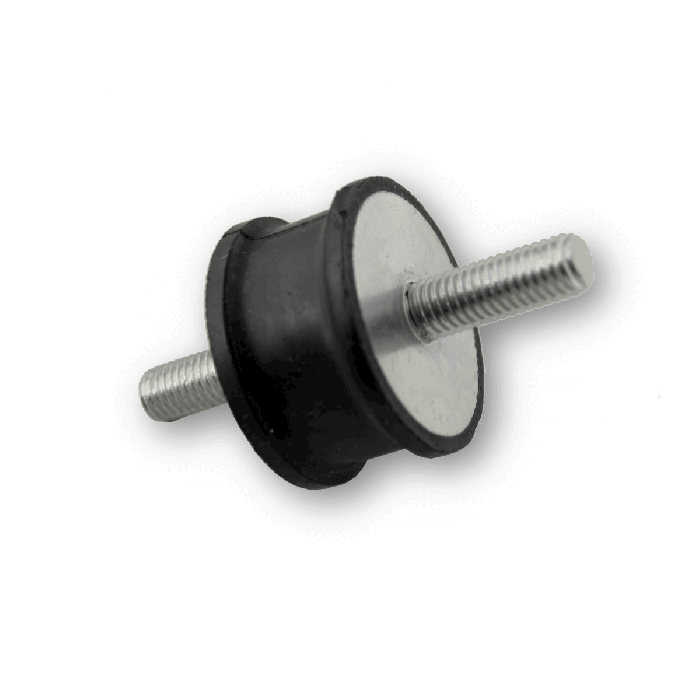

AF Shear Mount (M/M), Ø40mm H28mm, M8x23mm, NR 55 ShA Standard Steel

AF-Type Mounts offer superior vibration isolation and enhanced fatigue life with their waisted design, making them ideal for heavy-duty applications such as earth compactors and industrial machinery. With improved static load capacity and efficient material displacement, these mounts ensure optimal performance and stability.

• Mount Type: AF (Male/Male)
• Diameter: 40mm
• Height: 74mm
• Male Bolt Size: M8
• Male Bolt Length: 23mm
• Maximum Load Compression: 26Kg
• Maximum Shear Load: 5.2Kg
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.065Kg

Key Benefits

• Superior Vibration Isolation: These mounts are specifically designed to minimise vibrations, which helps reduce wear, tear, and noise during operation.
• Enhanced Fatigue Life: The waisted design reduces bond stress at the circular metal plate, significantly improving the mount’s fatigue life, making them highly durable and reliable even under prolonged use.
• Improved Static Load Capacity: The AF-Type Mounts offer higher static load capacity while maintaining excellent vibration isolation, ensuring they can handle demanding applications without compromising performance.
• Efficient Material Displacement: These mounts allow for greater material displacement, enhancing their ability to absorb vibrations and shocks while maintaining vertical stability, even under high pressure.
• Cost-Effective and Reliable: Offering an affordable solution for heavy-duty applications, these mounts deliver both performance and value, ensuring cost-effective operation without sacrificing quality.

Applications

• Earth Compactors
• Excavators and Loaders
• Agricultural Equipment
• Industrial Machinery
• HVAC Systems

Additional Information

• Waisted Design: The unique waisted design of the AF-Type Mounts helps reduce bond stress, improving the mount's fatigue life and ensuring it can withstand prolonged use without degradation.
• High Load Support: These mounts are designed to handle high static loads while providing excellent vibration isolation, making them ideal for heavy-duty applications in the construction, automotive, and industrial sectors.
• Easy Installation: AF-Type Mounts are simple to install, providing a hassle-free solution for equipment requiring vibration isolation. Their design ensures secure attachment, even under the most demanding conditions.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
